If you’ve ever had your check engine light come on and didn’t know why, an OBD2 scanner is the tool you need. I remember the first time I used one, and it saved me a lot of trouble. Instead of waiting days for a mechanic, I could check it myself in minutes. In this guide, I’ll show you how to use an OBD2 scanner to quickly find out what’s going wrong with your car. It’s a simple tool that can save you time, money, and stress. Let’s get started and see how easy car diagnostics can be!
Contents
What Is an OBD2 Scanner?
An OBD2 scanner is a tool that connects to your car’s computer system. It helps you read and understand codes about your car’s health. These codes are like messages from your car telling you if something is wrong. Using this tool is like giving your car a check-up. It helps you find issues before they get worse and cost you a lot of money.
For anyone who owns a car, an OBD2 scanner is super helpful. It gives you a clear view of your car’s condition. Instead of guessing, you know what’s wrong. I’ve used mine to save both time and money.
There are different types of OBD2 scanners. Some are basic, just reading codes and clearing lights. These are great for beginners. Bluetooth models let you connect your phone to your car, making it easier to check things. More advanced scanners are for professional mechanics. They can look at more details in your car. Wireless models make it even easier, as you don’t need to stay near the car to use them.
If you’re new to using an OBD2 scanner on your car, or looking for the best OBD2 scanners for beginners, there’s something out there for you. Choose what fits your needs, from simple readers to advanced Bluetooth options.
How to Use an OBD2 Scanner: A Step-by-Step Guide
Connecting the OBD2 Scanner to Your Car
First, locate the OBD2 port under your dashboard. It’s usually near the driver’s side, below the steering wheel. In some cars, it might be hidden under the console or a plastic cover. Once you find it, plug in your OBD2 scanner. The connector should fit perfectly, like a puzzle piece. You may need to wiggle it slightly to make sure it’s connected properly.
Powering Up the Scanner
Now, turn the ignition to the “on” position. You don’t need to start the car—just turn it on. This powers up the scanner. You should see the scanner’s screen light up. It’s ready to go! Some scanners may ask you for a bit more info, like your car’s make and model. This is easy to do, so don’t worry about it.
After the scanner powers on, you’ll see the menu. On most scanners, you’ll see options like “Read Codes,” “Erase Codes,” “Live Data,” and “Freeze Frame.” These are all helpful. “Read Codes” shows any trouble codes stored in the car. “Erase Codes” clears those codes after you fix the problem. “Live Data” lets you see real-time info from your car’s sensors. It’s like getting a snapshot of how your car is doing. “Freeze Frame” captures data at the moment a problem occurs, so you can understand what happened.
Navigating is easy! I’ve used several scanners, and once you understand the menu, it feels like using a simple app. The “Live Data” feature is my favorite—it shows sensor readings in real-time. It’s a great way to catch small problems early.
Interpreting Codes
When you read the codes, you’ll see a format like P0301. The first letter tells you the type of issue. P stands for powertrain, B is for body, C is for chassis, and U is for network issues. The numbers give more details. For example, P0301 means cylinder 1 is misfiring (powertrain issue).
Here’s a quick table with some common codes:
| Code | Description |
|---|---|
| P0301 | Cylinder 1 Misfire |
| P0138 | O2 Sensor High Voltage |
| U0100 | Lost Communication with ECU |
| P0455 | Emissions System Leak |
How to Clear the Check Engine Light
Once you’ve fixed the issue, you can clear the check engine light. Go back to the scanner and select “Erase Codes.” It’ll confirm that you want to erase the codes. Once confirmed, the check engine light should go off. Keep in mind, though, that if the problem isn’t fully fixed, the light may come back on.
Understanding Diagnostic Trouble Codes (DTCs)
When the check engine light turns on, it’s your car trying to talk to you. That’s where Diagnostic Trouble Codes (DTCs) come in. They’re like clues that help you figure out what’s wrong with your car.
Overview of DTC Formats
Let’s break down P0301, a common DTC:
- P = Powertrain. This tells you the issue is with the engine, transmission, or emissions.
- 0 = Generic. This means the code is used by all car manufacturers.
- 301 = Cylinder 1 misfire. It’s telling you that cylinder 1 isn’t working right.
This breakdown shows how DTCs point you directly to the problem.
Generic vs. Manufacturer-Specific Codes
You’ll see two types of codes: generic and manufacturer-specific.
- Generic codes (like P0xxx) are the same across all vehicles with an OBD2 system. These are easier to troubleshoot.
- Manufacturer-specific codes (like P1xxx) are unique to certain car brands. These may need a specialized tool or more advanced scanner.
Understanding these differences helps you know what you’re dealing with.
Common Codes You’ll Encounter
Here are a few typical DTCs:
- P0301 – Cylinder 1 misfire
- P0138 – O2 sensor high voltage
- P0455 – Large EVAP system leak
- U0100 – Lost communication with the engine control module (ECM)
Knowing these will help you recognize common issues.
Table of Common DTCs
Here’s a quick reference for some typical DTCs:
| Code | Meaning |
|---|---|
| P0301 | Cylinder 1 misfire |
| P0138 | O2 sensor high voltage |
| P0455 | EVAP system leak |
| P0171 | System too lean (bank 1) |
| U0100 | Lost communication with ECU |
This table helps you quickly decode some of the most common DTCs.
Why Understanding DTCs Helps
When you understand DTCs, you can take charge of your car’s maintenance. No more panic when the check engine light pops on. You can read the codes, figure out what’s going on, and decide if you can fix it or need a mechanic.
Using Live Data & Freeze Frame Data
When you use an OBD2 scanner, you don’t just get trouble codes. You can also access two powerful tools: live data and freeze frame data. These tools let you see your car’s health in real time and help you spot problems early.
Live Data: Watch Your Car in Action
Live data shows you how your car is running while it’s driving. You can check things like engine RPM, fuel trim, and sensor voltages. For example, if your car feels sluggish, live data can show you if something like the oxygen sensor is acting up.
Let me share a personal story: I once used live data to check the oxygen sensor voltages. The readings were all over the place. It turned out to be a faulty sensor. Fixing it saved me a lot of money.
Freeze Frame Data: Snapshot of the Problem
Freeze frame data captures a snapshot of your car’s performance when something goes wrong. When a trouble code is triggered, the scanner stores key data, like engine temperature and fuel trims, from the moment the problem happened.
This data is helpful when the check engine light flickers on and off. Sometimes, the light goes off before you have a chance to check it. Freeze frame data helps you catch that moment so you don’t miss it.
Real-Life Example: Diagnosing an Oxygen Sensor
A few months ago, I had a check engine light flickering on and off. I used live data to check the oxygen sensor, and the readings looked all over the place. With freeze frame data, I could see exactly when the sensor failed. I replaced the sensor and cleared the code myself, which saved me a trip to the mechanic.
Advanced Features: Extra Tools for Experts
Some OBD2 scanners have advanced features, like bi-directional control. This lets you test different car systems, like the fuel pump or the cooling fan, by sending commands from the scanner. This is a great feature for those who want to dive deeper into car repairs.
Common OBD2 Scanner Mistakes and How to Avoid Them
Using an OBD2 scanner can be a game-changer, but it’s easy to make mistakes along the way. I’ve been through it, and trust me, it’s frustrating when things don’t go as planned. But don’t worry, I’m here to help you avoid these common mistakes.
Mistake 1: Not Checking Compatibility Before Purchase
I remember the first time I bought an OBD2 scanner. I didn’t check if it worked with my car, and guess what? It didn’t! That’s a mistake you can easily avoid.
Tip: Before buying, make sure the scanner works with your car. Check the specs to see if it supports your car’s make and model. This will save you a lot of headaches.
Mistake 2: Misunderstanding Codes
When I first started using my scanner, I misunderstood the codes it showed me. I thought they were all the same, but each code means something different.
Tip: Always check the manual. The codes can tell you a lot, but they need to be interpreted correctly. Some codes are general, and others are specific to your car’s brand. Look up what each one means before taking any action.
Mistake 3: Clearing Codes Without Fixing the Problem
I’ll admit, I’ve done this one too. It’s tempting to clear the codes and move on, but that doesn’t solve the issue.
Tip: Fix the problem before clearing the codes. A scanner is a diagnostic tool, not a quick fix. If you just clear the codes, the problem will likely come back. Address the root cause to avoid future issues.
By avoiding these mistakes, you’ll get the most out of your OBD2 scanner. Check compatibility, understand the codes, and always fix the issue before clearing codes. This simple approach will save you time, money, and frustration.
Choosing the Right OBD2 Scanner for Your Needs
Choosing an OBD2 scanner can be tricky. With so many choices, it’s easy to get confused. But don’t worry! I’ve been through this myself, and I’ll share what I’ve learned. Whether you’re a beginner or experienced DIYer, there’s a scanner for you.
Things to Think About
When you’re picking a scanner, here are a few things to keep in mind:
- Compatibility – Check if the scanner works with your car’s make and model.
- Functionality – Some scanners just read codes, while others show live data. Choose one that fits your needs.
- Ease of Use – Some scanners are easy to navigate, others are more complex. Find one that feels comfortable.
- Display Size – Larger screens are easier to read. But if space is tight, smaller screens work too.
- Price – Budget scanners are fine for occasional use, but if you want more features, expect to pay more.
Types of Scanners
Let’s look at the types of scanners:
- Basic Code Readers: These are perfect for simple code checks. I used one like this when I first started fixing my car. They’re great for quick diagnostics and clearing codes.
- Advanced Tools: These scanners let you read deeper codes and see live data. I upgraded to one of these when I needed more than just a basic check. It’s a great choice for DIYers or anyone wanting extra features.
- Bluetooth Models: These connect to your phone, which makes them super convenient. I love using mine because it syncs right with my phone. It’s like having a mechanic in your pocket.
Price vs. Features
Budget scanners are fine for quick fixes. But if you plan to use your scanner often, or need more advanced features, you’ll want to spend a little more. I found this out when I upgraded to a mid-range scanner. The extra features made a big difference.
Recommendations

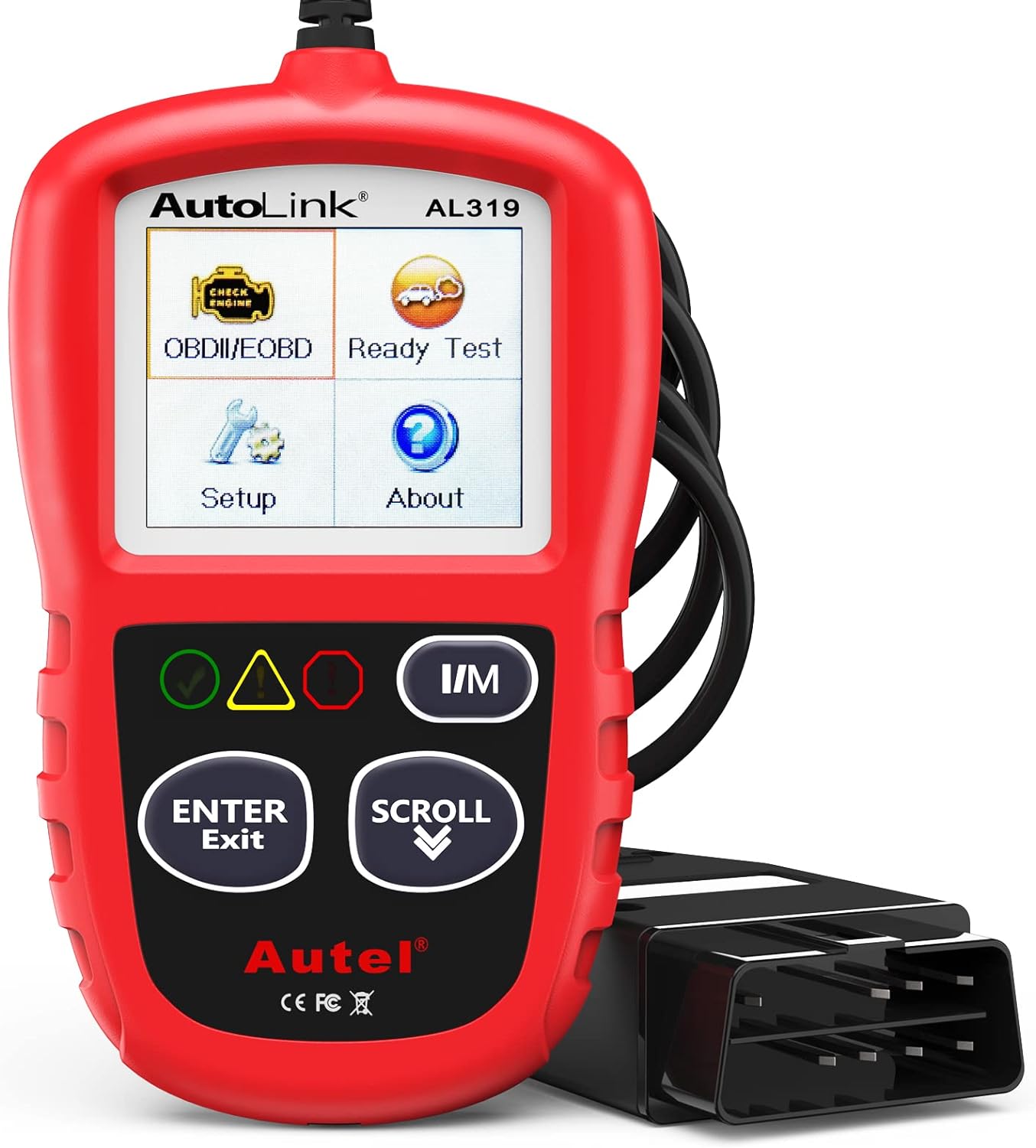

- For Beginners: Try the Autel AL319. It’s simple and affordable.

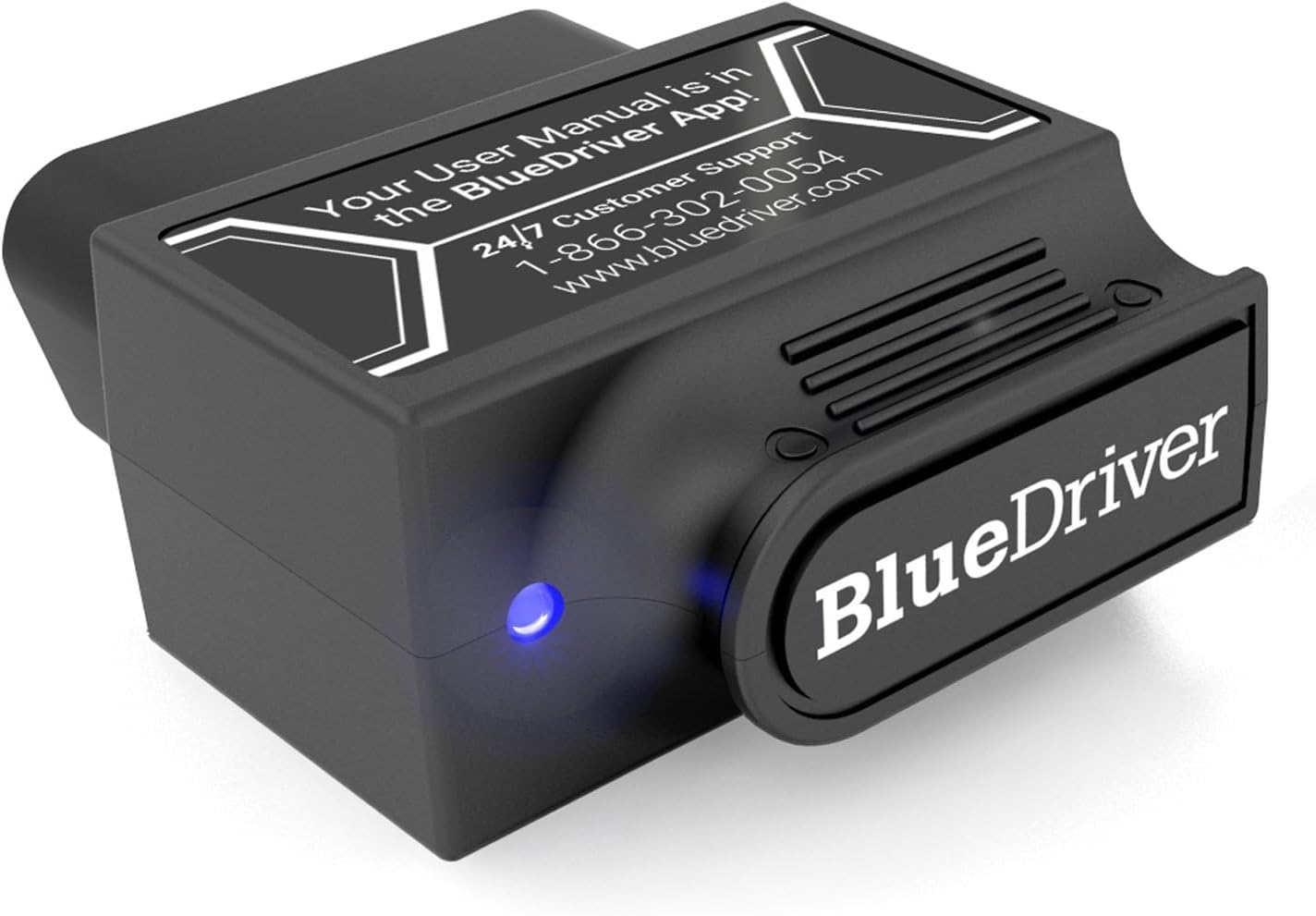

- For Intermediates: The Bluedriver Bluetooth OBD2 scanner is perfect. It’s easy to use and gives detailed info.
- For Pros: The Launch X431 V Pro is the one I recommend. It’s a great all-around tool for serious car work.
Mobile Apps & OBD2 Scanners
Using a mobile app with your OBD2 scanner can make car diagnostics a breeze. I’ve used a few myself, and it’s a huge game-changer. Instead of carrying around big gadgets, apps give you real-time data right from your phone. It’s saved me time and made things so much easier.
Overview of Popular OBD2 Scanner Apps
There are a lot of great apps out there that work with Bluetooth OBD2 scanners. I’ve tried BlueDriver, Torque Pro, and Car Scanner ELM OBD2. These apps let you check real-time data, error codes, and even diagnose car issues right from your phone. They’re easy to use, and honestly, they’re a big upgrade from the bulky scanners I used to use.
Pairing and Setup
Pairing the OBD2 scanner to your phone is really simple. I thought it would be hard the first time, but it wasn’t. Plug the scanner into the car, turn on the ignition, then connect the scanner via Bluetooth or Wi-Fi to your phone. The apps guide you step-by-step, and you’re ready to go in minutes!
App Features
Once it’s connected, the app does a lot. You can see live data like engine speed, fuel levels, and sensor readings. The app also makes reports for you. If you get an error code, the app can tell you what it means and even give suggestions on how to fix it. It’s like having a mechanic on your phone.
Related Keywords:
- OBD2 scanner app: Use your phone for easy car diagnostics.
- How to use OBD2 scanner app: Connect and start diagnosing car issues.
I’ve found that using apps with an OBD2 scanner makes it easier to spot car problems early. You can fix small issues before they turn into big, expensive ones. If you’re tired of the old ways of car maintenance, give a mobile app and OBD2 scanner combo a try. It’ll make your life easier!
Understanding the Different Features and Capabilities of OBD2 Scanners
OBD2 scanners have different features to meet various needs. Here are some common features and what they offer:
- Code Reading: Basic OBD2 scanners can read and clear diagnostic trouble codes (DTCs). This helps you spot and reset issues in your vehicle.
- Live Data: Advanced scanners show real-time data like engine RPM, fuel efficiency, and coolant temperature. This data helps diagnose issues and improve performance.
- DTC Definitions: Some scanners offer descriptions for the trouble codes, making it easier to understand what’s wrong with your car.
- Freeze Frame Data: This feature stores a snapshot of the car’s condition when a fault happens. It helps you track what caused the issue.
- O2 Sensor Testing: Some scanners can test your O2 sensors, helping you identify and fix related issues.
- Smog Check: Some scanners are made for smog checks. They can quickly check if your car meets emissions standards.
How To Interpret Error Codes And Troubleshoot Common Vehicle Issues
With an OBD2 scanner, understanding error codes is key. Here’s a simple guide to help you troubleshoot common car problems:
- Connect the OBD2 Scanner: Find the OBD2 port under the dashboard, near the driver’s side. Plug the scanner in firmly.
- Turn on the Ignition: Switch the ignition to “on” without starting the engine. This lets the scanner connect to your car’s computer.
- Read the Codes: Use the scanner’s display to read the codes. Write them down for later analysis.
- Interpret the Codes: Check the scanner’s manual or search online to understand what the codes mean. Each one points to a specific issue in your car.
- Troubleshoot the Issue: Once you know what the codes mean, start diagnosing. Look at the parts, wiring, and connections that could be causing the problem.
- Fix the Problem: Depending on the code, you might need to replace parts or fix wiring. Follow your car’s repair guidelines.
- Clear the Codes: After you fix the issue, use the scanner to clear the codes. This ensures the problem is solved and stops false warnings.
Frequently Asked Questions (FAQ)
Do I need technical knowledge to use an OBD2 scanner?
No, you don’t need to be a mechanic to use an OBD2 scanner. Most scanners are user-friendly, and apps make it even easier to connect and read codes. It’s a simple process, even for beginners!
Can an OBD2 scanner fix my car’s problems?
An OBD2 scanner can’t fix car problems directly. It helps identify the issue by reading error codes. Once you know the problem, you can fix it yourself or take the information to a mechanic for further repair.
Will using an OBD2 scanner void my vehicle’s warranty?
No, using an OBD2 scanner will not void your car’s warranty. The scanner is a diagnostic tool, and it doesn’t alter your vehicle’s systems or make any changes that would affect the warranty.
How can I clear my check engine light with an OBD2 scanner?
To clear the check engine light, connect the OBD2 scanner, read the codes, and resolve the issue. Then, choose the option to erase or clear the codes. The check engine light should turn off once the issue is fixed.
Can I use an OBD2 scanner while driving?
It’s not recommended to use an OBD2 scanner while driving. While it’s okay to check real-time data like engine speed or fuel usage, you should focus on driving and only use the scanner while the vehicle is parked.
What is freeze-frame data and how does it help diagnose car issues?
Freeze-frame data records the vehicle’s parameters at the time an error occurred. This snapshot helps identify specific conditions that led to the problem, making it easier to troubleshoot intermittent issues or problems that only appear under certain circumstances.
My Final Thoughts on Choosing the Right OBD2 Scanner
If you enjoy handling car maintenance yourself, an OBD2 scanner is a great tool for you. It helps you find problems quickly without needing a mechanic. If you’re someone who needs advanced features, a professional model might be better. From my experience, the right scanner depends on your needs. Choose one that fits your car, your budget, and how much detail you want. With the right scanner, you can easily stay on top of your car’s health.
